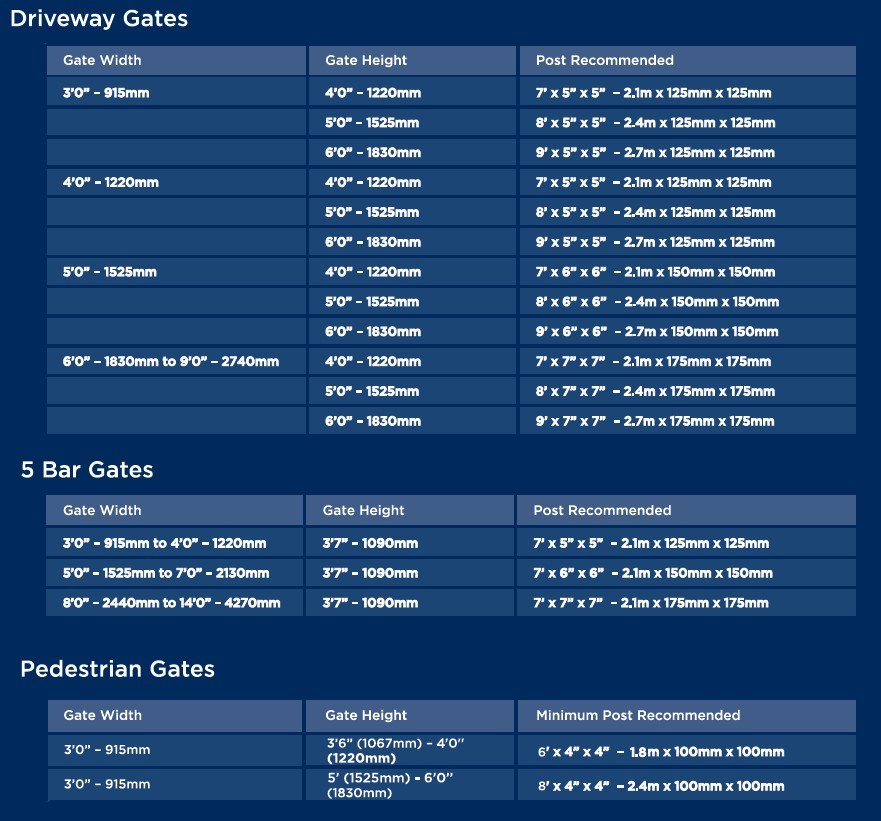

Gate Post Recommendations

(These guidelines dep., on ground conditions)
Charlton individual gate posts are supplied from our LONGLAST range which is recommended for ground contact because it is treated to the British Standard BS8417. We only use Redwoods for all of our posts due to it, natural durability, we then naturally air dry the timber to 28% moisture content which ensures the pressure treatment is then absorbed and retained through the sapwood to the durable heartwood. The LONGLAST ranges comes with a 15 year guarantee.

Courtyard Gates Recommendations

Gate Width Gate Height Post Recommendation
3’0″ – 915mm 4’0″ – 1220mm 7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
5’0″ – 1525mm 8′ x 5″ x 5″ – 2.4m x 125mm x 125mm
6’0″ – 1830mm 9′ x 5″ x 5″ – 2.7m x 125mm x 125mm
 4’0″ – 1220mm 4’0″ – 1220mm 7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
5’0″ – 1525mm 8′ x 5″ x 5″ – 2.4m x 125mm x 125mm
6’0″ – 1830mm 9′ x 5″ x 5″ – 2.7m x 125mm x 125mm
5’0″ – 1525mm 4’0″ – 1220mm 7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
5’0″ – 1525mm 8′ x 5″ x 5″ – 2.4m x 125mm x 125mm
6’0″ – 1830mm 9′ x 5″ x 5″ – 2.7m x 125mm x 125mm
6’0″ – 1830mm to 9’0″ – 2740mm 4’0″ – 1220mm 7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
5’0″ – 1525mm 8′ x 5″ x 5″ – 2.4m x 125mm x 125mm
 6’0″ – 1830mm  9′ x 5″ x 5″ – 2.7m x 125mm x 125mm

5 Bar Gates

Gate Width Gate Height Post Recommended
3’0″ – 915mm to 4’0″  – 1220mm 3’7″ – 1090mm 7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
5’0″ – 1525mm to 7’0″  – 2130mm 3’7″ – 1090mm 7′ x 6″ x 6″ – 2.1m x 150mm x 150mm
7’0″ – 240mm to 14’0″  – 4270mm 3’7″ – 1090mm 7′ x 7″ x 7″ – 2.1m x 175mm x 175mm

Pedestrian Gates

Gate Width Gate Height Post Recommended
3’0″ – 915mm 3’6″ – 1067mm t0
4’0″- 1220mm
7′ x 5″ x 5″ – 2.1m x 125mm x 125mm
Item #2 5’0″ – 1525mm 8′ x 5″ x 5″ – 2.4m x 125mm x 125mm
Item #3 6’0″ – 1830mm 9′ x 5″ x 5″ – 2.7m x 125mm x 125mm

Equestrian Gates

Gate Width Gate Height Post Recommended
10’0″ – 3050mm to 12’0″  – 3660mm 5’0″ – 1525mm 8′ x 8″ x 8″  – 2.4m x 200mm x 200mm
